Hydraulic Cart Dumpers/Tippers
Sebright Hydraulic Cart Dumpers/Tippers help save time, reduce back injuries, cut costs, and solve material handling problems. Our Hydraulic Cart Dumpers/Tippers can be customized to accommodate your current carts even if you have multiple cart styles.
We have several styles of Hydraulic Cart Dumpers/Tippers and decades of experience solving unique challenges presented to us by our clients. We have designed and manufactured systems that can:
- Integrate weighing, dumping, and compaction equipment
- Lift carts up to 30,000 lbs.
- Lift carts to heights of over 20 feet
- Dump your existing carts
- Dump multiple sizes and styles of carts
- Dump multiple carts at one time
- Dump manually or fully automatic
- Dump unattended from automated vehicles
- Dump through an insulated door to exterior equipment
- Safely dump from multiple floors into the same equipment
Following are descriptions of the models of Hydraulic Cart Dumpers that Sebright Products, Inc., manufacturers:
MODEL CD-1-4-16
Our CD-1-4-16 is the economical Hydraulic Cart Dumpers/Tipper made to lift moderate loads and carts up to 1 cubic yard. This dumper uses a 4-inch cylinder and heavy support frame to lift loads up to 48 inches.
1 cu. yd. capacity
- Industrial & Commercial Manufacturing
- Retail stores
- Hospitals
- Universities
- Household waste
- Office trash
- Basic waste stream
HP Series Cart Dumpers

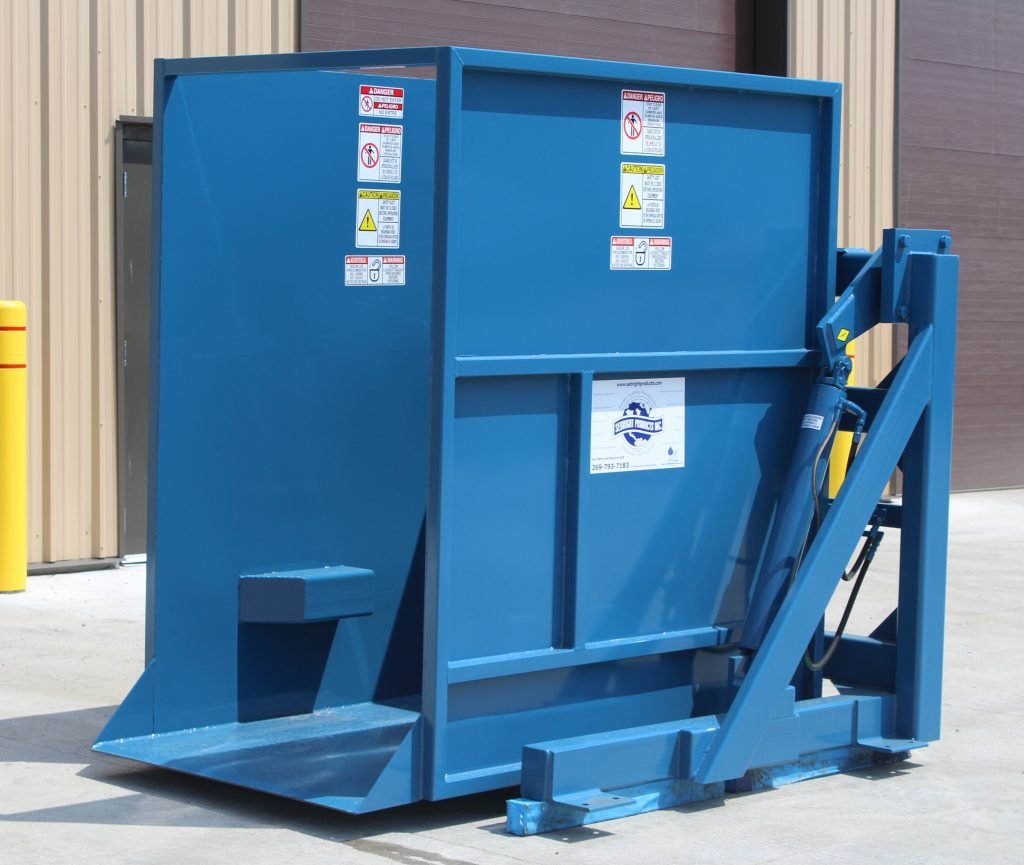

High Profile (HP Series Dumpers/Tippers) are designed for heavy loads from ground level, side dumping/tipping where differences in elevations exist. Two cylinders mounted diagonally to the frame, which provide cart dumping up to 84-inch elevations. The OD Version is designed with a wide frame that can straddle the deck of most compactors including self-contained styles to provide a free-standing cart dumper that can lift large loads up to moderate heights.
6 cu. yd. capacity
- Industrial & Commercial Manufacturing
- Retail stores
- Casinos
- Industrial refuse
- Office trash
- Basic waste streams
HPV Series Cart Dumpers
HPV Series Dumpers are designed for heavy loads from ground level and side dumping/tipping where differences in elevations exist. The two hydraulic cylinders are mounted vertically to provide a versatile dumper that can accept carts from the end or the side. These dumpers can lift up to an 84-inch elevation, available as a free-standing unit or anchored to other equipment for space saving. These dumpers are well suited for either end or side cart entrance.
6 cu. yd. capacity
- Industrial & Commercial Manufacturing
- Retail stores
- Hospitals
- Universities
- Household waste
- Office trash
- Basic waste stream
HL Series Cart Dumpers
HL Series Dumpers are designed for moderate loads from ground level where large differences in elevations exist. These dumpers can provide cart dumping up to a 30-foot elevation. These dumpers can be designed to load from the end or side, as the application requires. Standard construction models lift up to 4000 lbs. and custom designs can be engineered for higher weights.
2 cu. yd. capacity
- Industrial & Commercial Manufacturing
- Retail stores
- Casinos
- Industrial refuse
- Office trash
- Basic waste streams
LA Series Cart Dumpers
LA Series Dumpers are designed for heavy loads from ground level and carries the cart over the deck of the equipment. These dumpers can provide cart dumping up to a 16-foot elevation.
3 cu. yd. capacity
- Industrial & Commercial Manufacturing
- Retail stores
- Casinos
- Industrial refuse
- Office trash
- Basic waste streams
LP Series Dumpers
Low Profile (LP Series Dumpers) are designed for heavy loads and are usually used for deck mounted applications. Two (2) 4-inch cylinders are mounted horizontally to the dumper frame to lift carts up to 60 inches.
