EPS Foam Densification System

THE NEXT GENERATION OF DENSIFICATION SYSTEMS

Expanded Polystyrene (EPS) commonly known as Styrofoam TM (trademark of Dow Chemical) is found almost everywhere in our daily lives. It is used for everything from coffee cups to home insulation because of its light weight and high insulation value. EPS often gets a bad rap from environmentalists, but did you know that it is a high value recyclable material?

Recycled EPS is used to make a host of items from DVD cases to park benches. So why does so much EPS still go to the landfill? It is precisely because the material is light and bulky. For example, a whole semi full of the lose material may weigh as little as 3,000 lbs. Let’s be conservative and say it is worth $.25 per pound and that would make the whole load worth $750. Unfortunately, you can’t ship it very far for $750. However, if the EPS is run through a Sebright Products EPS Densifier before shipment it can be stacked on pallets and load weights can be over 40,000 pounds! To sum it up, a 38,000-pound load @ $.25/pound is worth $9,500.00.

Interested in a Densifier?

Contact Julie Paxson for a quote.

Julie Paxson
Densifier Sales
Phone: 616-293-2192
Email: julie@sebrightproducts.com

About the Densifiers

A Sebright Products Densifier system can reduce the storage space needed on loose EPS products by 50-1 and as a result, can increase the density of the raw material by as much as 30 times. So, if your business generates large amounts of EPS scrap talk to us about turning that disposal expense into revenue. On the other hand, let us help you with equipment and financing options as well as potential outlets for the EPS. Likewise, even if your volume does not justify equipment, there may be able a way to help you by putting you into contact with a recycler in your area.

Professional Grade Equipment

EPS Densifiers are heavy duty “Professional Grade” machines. This equipment is designed and manufactured in the United States. Factory direct service and installation are available in North America. Above all, the original EPS Densifiers we manufactured in 1995 are still in service today.

Proprietary PLC Operated ADCS (Automated Densification Control System)

The PLC monitors & maintains both the compression ram and the discharge restrictor plate pressures. Proprietary control logic (ADCS) automatically controls the restrictor plate hydraulic pressure to allow expanded polystyrene discharge after compression parameters are attained. Subsequently allowing a wide range of expanded polystyrene material to be processed without operator intervention. Many competing Densifiers have only a manual restrictor plate pressure adjustment which does not compensate for changing foam properties and differences in friction, therefore, results in either low block density or densifier jamming issues unless frequently monitored.

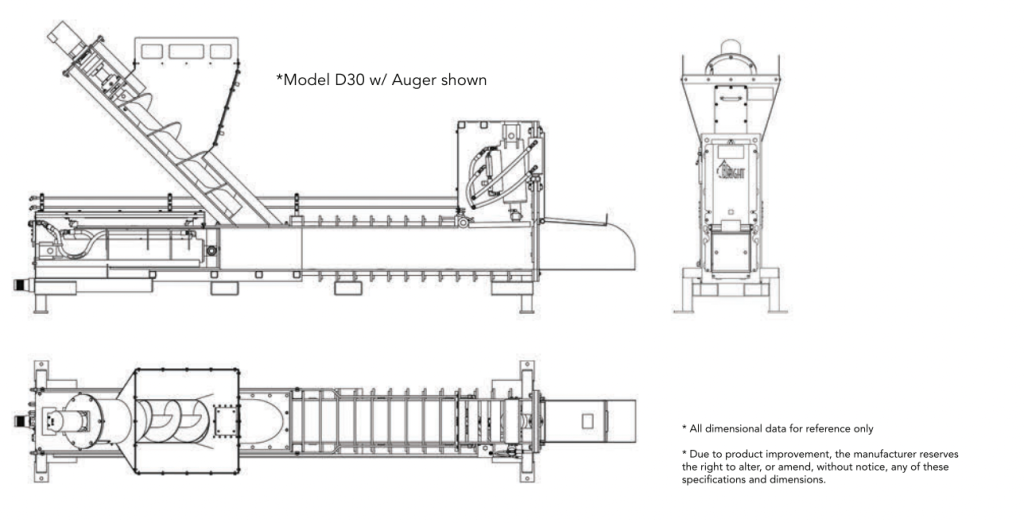

Our expanded polystyrene densifiers can operate unattended and as a result, are only limited by the amount of EPS available in the bag hopper and the amount of length for the discharge log of material until it must be stacked. The large feed opening on both the D30 and the D120 Densifier help keep the foam moving and minimize bridging in the bag hopper. The Auto Shear option scores the “log” of EPS block at predetermined lengths allowing less labor and more uniform pallets of material.

Features and Benefits

Sebright Products Inc
EPS Densifiers

Benefits Include:

  • Densified Expanded Polystyrene Foam full truckload weights *
  • Up to 1200 lbs. per Hour**
  • Heavy Duty / Low Maintenance
  • Integral Dust Collection Port
  • Sealed Design/ Clean Operation
  • Two Line Operator Display
  • PLC Modem for Remote Support
  • Automated Density Control System
  • Consistent EPS Discharge
  • No Heat Is Applied
  • Does NOT Melt EPS
  • Automatic Discharge Shear Option
  • No Odors
  • Low Labor Requirement
  • Low Energy Requirements

Options

PBX2 Pre-Breaker

The PBX2 Pre-Breaker features a wide 54-inch removable hopper to accept large pieces of EPS. Dual direct drive 7.5 HP gear motors drive our unique spiral pattern chipping rolls which can process EPS at up to 2000 cubic feet per hour. The powerful 7.5 HP output blower efficiently moves the EPS up to a bag hopper. An auxiliary 3HP blower is provided to insure material movement in the lower collection bin. Additionally, the whole unit is prewired, and skid mounted, with integral fork pockets built into the skid for quick installation.

Need to sort your EPS?

The Pre-Breaker Feed Conveyor is ideal for use on smaller EPS materials. With your sorting table (32 inch or higher) at the feed end of the conveyor employees can push or pull the clean product onto the conveyor and push the foreign materials into a bin off to the side. The 46-inch-wide belt has one-inch cleats to move smaller items up the belt and a safety rope pull extends around three side of the conveyor.

Optional Equipment Includes:

  • Automated Block Shear
  • Discharge Table
  • Bag House Assemblies
  • Blower Systems
  • Foam Pre-Breaker
  • Pre-Breaker Feed Conveyor

Ideal for Industries

Furniture Manufacturer

Foam Manufacturer

Retailers

Warehouses
